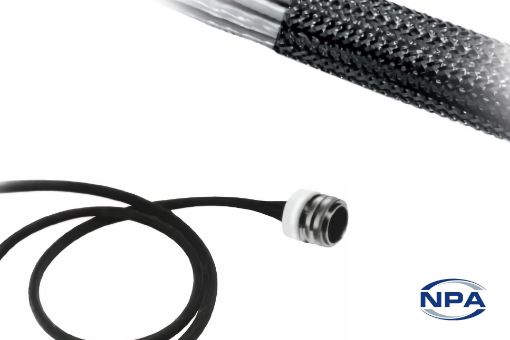

Sleeving (Sold by Metre) Braided Black

Product Code: 8990

Manufacturer: Heyco

UOM: EACH

Polyester braided sleeving to protect cables and bundles measuring 6.4mm to 19.1mm in diameter. Full 30m reels available on request.

Download Datasheet

Products specifications

Description	Sleeving (Sold by Metre)
Type	Braided
Colour	Black
Material	Polyester Monofilament Yarn
Diameter	12.7mm
Cable Size Minimum	6.4mm
Cable Size Maximum	19.1mm
Minimum Temperature	-75°C
Maximum Temperature	125°C
Certifications	UL
Other information	Monofilament Diameter 0.010" \| Reel Size: 30m
