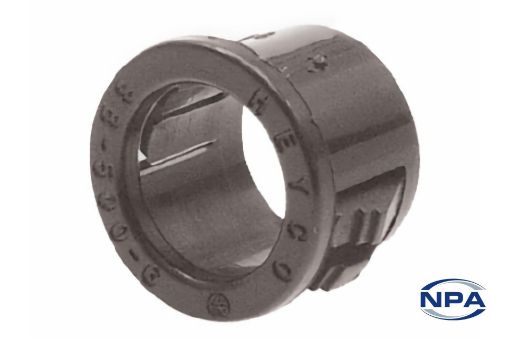

Bushing Snap Black

Product Code: 2060
Manufacturer: Heyco
UOM: EACH
Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).
Products specifications
DescriptionBushing
TypeSnap
ColourBlack
MaterialNylon 66
Height10.3mm
Diameter16.7mm
Mounting Hole Diameter14.3mm
Internal Hole Diameter7.9mm
Panel Thickness3.2mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
