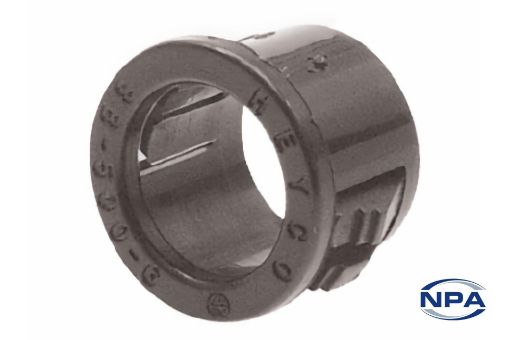

Bushing Snap Black

Product Code: 2182

Manufacturer: Heyco

UOM: EACH

Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).

Download Datasheet

Products specifications

Description	Bushing
Type	Snap
Colour	Black
Material	Nylon 66
Height	11.5mm
Diameter	33.3mm
Mounting Hole Diameter	30.2mm
Internal Hole Diameter	23.8mm
Panel Thickness	3.2mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA

Customers who bought this item also bought

Bushing Snap Black

Product Code: 2140

UOM: EACH

Height: 11.5mm

Diameter: 28.6mm

Mounting Hole Diameter: 25.4mm

Internal Hole Diameter: 19.4mm

Panel Thickness: 3.2mm

Easy to install snap-in bushings smooth and insulate holes. Withstand a push back force of 35 lbs. (16kg).

to purchase this item

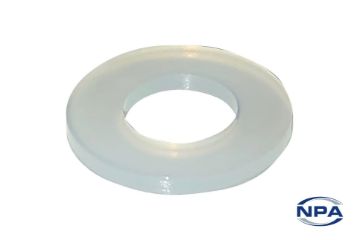

Washer Flat Natural
