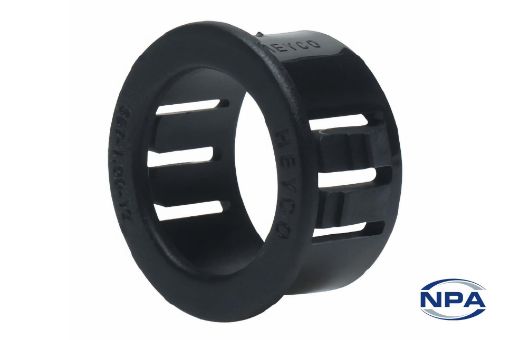

Picture of Bushing Snap Black

Bushing Snap Black

Product Code: 3104
Manufacturer: Heyco
UOM: EACH
Snap-in bushings convert raw-edged holes to smooth, neat, insulated holes. Withstand a push back force over 35 lbs. (16kg).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionBushing
TypeSnap
ColourBlack
MaterialNylon 66
Height14.3mm
Diameter24.2mm
Mounting Hole Diameter22.2mm
Internal Hole Diameter17.5mm
Panel Thickness6.4mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
