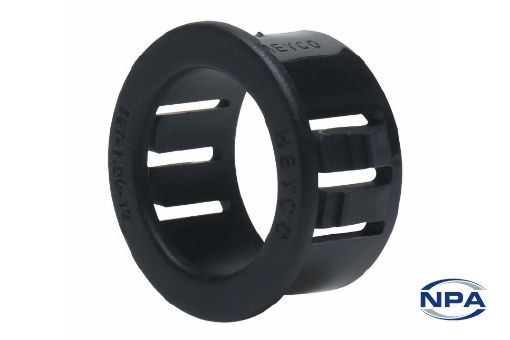

Picture of Bushing Snap Black

Bushing Snap Black

Product Code: 3126
Manufacturer: Heyco
UOM: EACH
Easy to install snap-in bushings smooth and insulate holes. Withstand a push back force over 35 lbs. (16kg).
Download Datasheet
Login to purchase this item
Products specifications
DescriptionBushing
TypeSnap
ColourBlack
MaterialNylon 66
Height14.3mm
Diameter14.7mm
Mounting Hole Diameter12.7mm
Internal Hole Diameter9.9mm
Panel Thickness6.4mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
