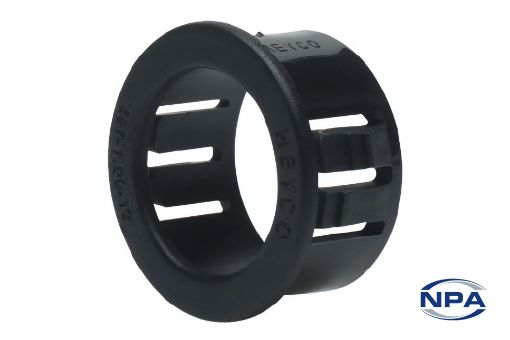

    Picture of Bushing Snap Black

    Bushing Snap Black

    Product Code: 3128
    Manufacturer: Heyco
    UOM: EACH
    Snap-in bushings convert raw-edged holes to smooth, neat, insulated holes. Withstand a push back force over 35 lbs. (16kg).
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionBushing
    TypeSnap
    ColourBlack
    MaterialNylon 66
    Height14.3mm
    Diameter30.9mm
    Mounting Hole Diameter27.8mm - 28.6mm
    Internal Hole Diameter23.8mm
    Panel Thickness6.4mm
    Minimum Temperature-18°C
    Maximum Temperature105°C
    Flammability Rating94V-2
    CertificationsUL, CSA
