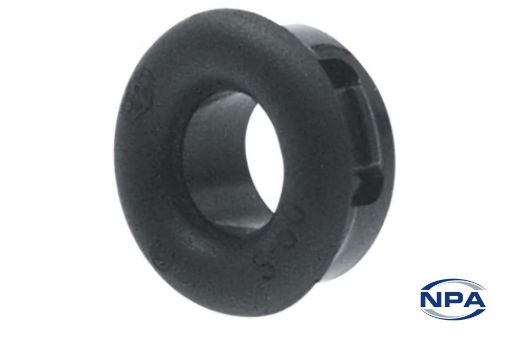

Picture of Bushing Snap-In Smooth Bore Black

Bushing Snap-In Smooth Bore Black

Product Code: 2516
Manufacturer: Heyco
UOM: EACH
Snap-in bushings with extra internal insulation to ensure the locking fingers don't interfere with cables.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionBushing
TypeSnap-In Smooth Bore
ColourBlack
MaterialNylon 66
Height11.2mm
Diameter18.3mm
Mounting Hole Diameter15.9mm
Internal Hole Diameter6.4mm
Panel Thickness3.2mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationExtra Internal Insulating Sleeve
