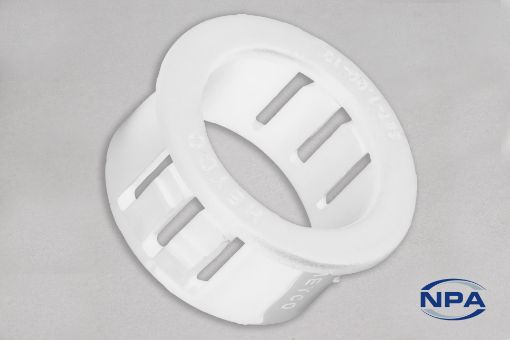

    Picture of Bushing Snap White

    Bushing Snap White

    Product Code: 2018
    Manufacturer: Heyco
    UOM: EACH
    Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionBushing
    TypeSnap
    ColourWhite
    MaterialNylon 66
    Height10.3mm
    Diameter11.9mm
    Mounting Hole Diameter9.5mm
    Internal Hole Diameter7.1mm
    Panel Thickness4.3mm
    Minimum Temperature-18°C
    Maximum Temperature105°C
    Flammability Rating94V-2
    CertificationsUL, CSA
