Picture of Cable Gland Break-Thru Multi Hole Black

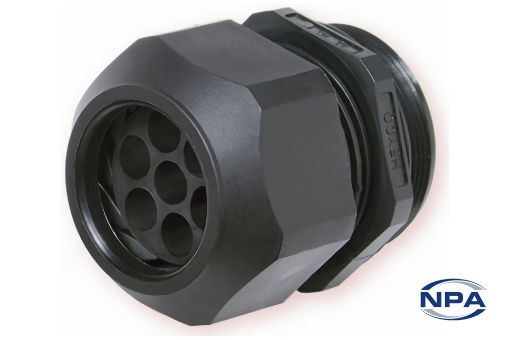

Cable Gland Break-Thru Multi Hole Black

Product Code: M3234GBS-SM
Manufacturer: Heyco
UOM: EACH
3/4" NPT threaded cable glands with a break-thru seal covering three holes for 7.7mm cables.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeBreak-Thru Multi Hole
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length50.8mm
Width33mm
Mounting Hole Diameter26.4mm
Thread Length15.7mm
Thread PitchNPT ¾"
Cable Size mm7.7mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other information3 Holes With Lock Nut
