Picture of Cable Gland Break-Thru Multi Hole Black

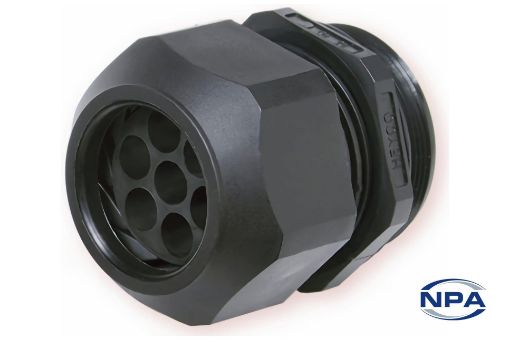

Cable Gland Break-Thru Multi Hole Black

Product Code: M3317GBZ-SM
Manufacturer: Heyco
UOM: EACH
1 1/2" NPT threaded cable glands with a TPE sealing skin. Punch through the skin with cables for an IP 68 liquid tight fit. Fits up to eleven holes 7.7mm in diameter.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeBreak-Thru Multi Hole
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length71.4mm
Width63mm
Mounting Hole Diameter48.8mm
Internal Hole Diameter7.7mm
Thread Length19.3mm
Thread PitchNPT 1 ½"
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other information11 Holes With Lock Nut
