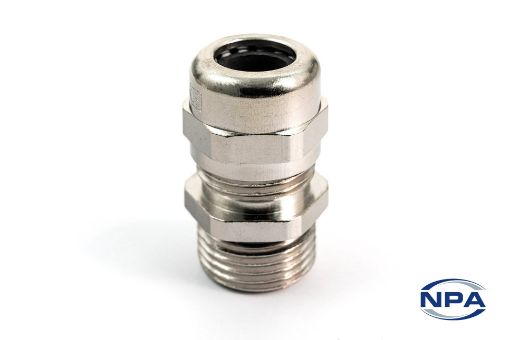

Picture of Cable Gland EMC "Perfect" With Contact Spring

Cable Gland EMC "Perfect" With Contact Spring

Product Code: DEL60750
Manufacturer: Delaunay
UOM: EACH
M20 x 1.5mm glands with a contact spring for shielded cables. Protect the cable against twisting. Sealing rated at IP 68. Meets standard EN 60423. Fit cables 9mm to 13mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeEMC "Perfect" With Contact Spring
MaterialNickel Plated Brass
Width22mm
Height33.5mm
Thread Length10mm
Thread PitchM20 x 1.5mm
Cable Size Minimum9mm
Cable Size Maximum13mm
IP RatingIP 68
Minimum Temperature-20°C
Maximum Temperature100°C
CertificationsUL
