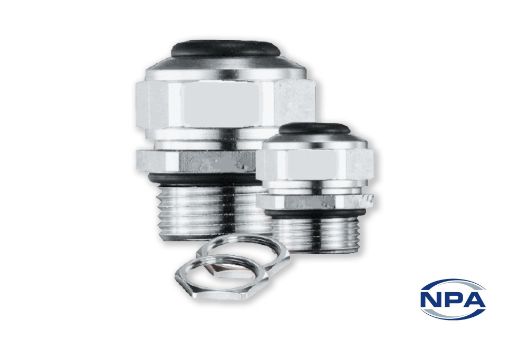

Picture of Cable Gland Liquid Tight

Cable Gland Liquid Tight

Product Code: 4506
Manufacturer: Heyco
UOM: EACH
M10 threaded brass cable glands compliant with European standard EN 50262. Rated IP 68. Fit 4mm - 6mm cables.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeLiquid Tight
MaterialNickel Plated Brass
Length25mm
Width13mm
Internal Hole Diameter10mm
Thread Length10mm
Thread PitchM10 x 1.5mm
Cable Size Minimum4mm
Cable Size Maximum6mm
IP RatingIP 68, 69K
Minimum Temperature-40°C
Maximum Temperature100°C
CertificationsUL
Other informationStandard Thread
