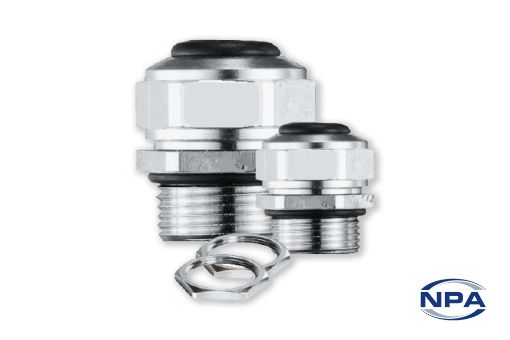

Cable Gland Liquid Tight

Product Code: 4508
Manufacturer: Heyco
UOM: EACH
M12 threaded brass cable glands compliant with European standard EN 50262. Rated IP 68. Fit 5mm - 6.5mm cables.
Products specifications
DescriptionCable Gland
TypeLiquid Tight
MaterialNickel Plated Brass
Length27mm
Width15mm
Internal Hole Diameter12mm
Thread Length10mm
Thread PitchM12 x 1.5mm
Cable Size Minimum5mm
Cable Size Maximum6.5mm
IP RatingIP 68, 69K
Minimum Temperature-40°C
Maximum Temperature100°C
CertificationsUL
Other informationStandard Thread
