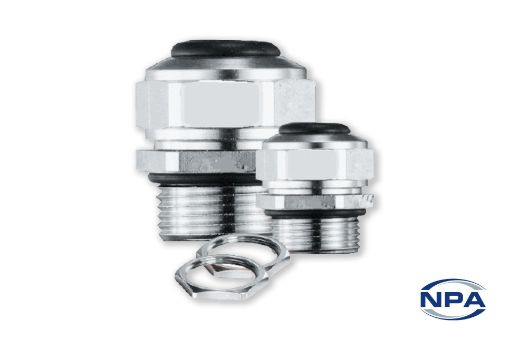

Cable Gland Liquid Tight

Product Code: 4512
Manufacturer: Heyco
UOM: EACH
M16 threaded brass cable glands compliant with European standard EN 50262. Rated IP 68. Fit 6mm - 8mm cables.
Products specifications
DescriptionCable Gland
TypeLiquid Tight
MaterialNickel Plated Brass
Length30mm
Width18mm
Internal Hole Diameter16mm
Thread Length10mm
Thread PitchM16 x 1.5mm
Cable Size Minimum6mm
Cable Size Maximum8mm
IP RatingIP 68, 69K
Minimum Temperature-40°C
Maximum Temperature100°C
CertificationsUL
Other informationStandard Thread
