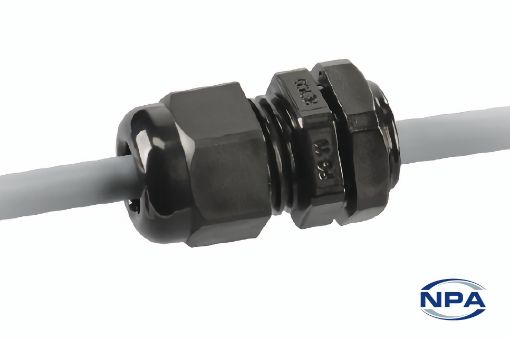

Cable Gland Liquid Tight Black

Product Code: 3219
Manufacturer: Heyco
UOM: EACH
PG-16 Black cable glands rated for IP 68 sealing. Fit cables from 5.8mm to 13.9mm in diameter.
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length42.2mm
Width26.7mm
Internal Hole Diameter22.5mm
Thread Length11.4mm
Cable Size Minimum5.8mm
Cable Size Maximum13.9mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationIncludes Nylon Nut
