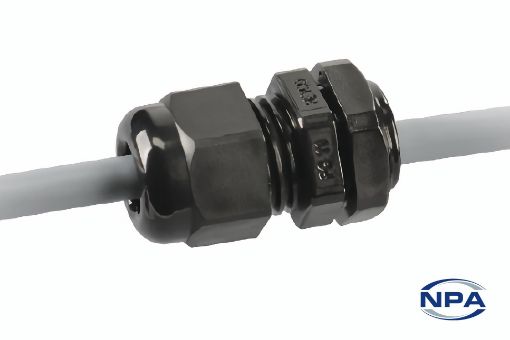

Picture of Cable Gland Liquid Tight Black

Cable Gland Liquid Tight Black

Product Code: 3222
Manufacturer: Heyco
UOM: EACH
PG-21 threaded black cable glands for sealing holes liquid tight. Rated IP 68. Fit cables from 11.4mm to 18mm in diameter.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length47.5mm
Width33mm
Internal Hole Diameter28.3mm
Thread Length13.2mm
Cable Size Minimum11.4mm
Cable Size Maximum18mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationIncludes Nylon Nut
