Cable Gland Liquid Tight Black

Product Code: 4782
Manufacturer: Heyco
UOM: EACH

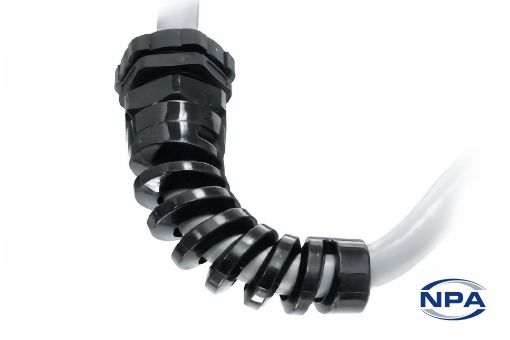

PG-9 threaded pigtail cable glands prevent sharp bends on cables while maintaining a liquid tight seal. Rated IP 68. Fit 4.6mm to 7.9mm cables in diameter. Nut is not included.
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length70.4mm
Width19.1mm
Mounting Hole Diameter15.2mm
Thread Length8.6mm
Cable Size Minimum4.6mm
Cable Size Maximum7.9mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationNo Nut
