Cable Gland Pigtail Black

Product Code: 3237

Manufacturer: Heyco

UOM: EACH

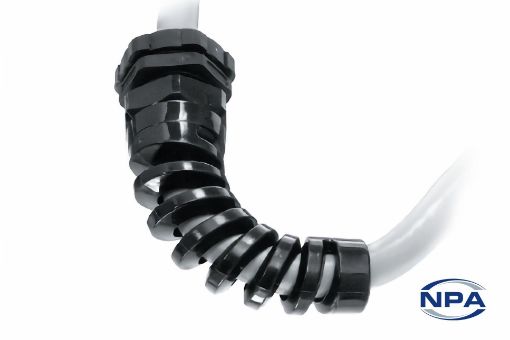

PG-7 threaded pigtail cable glands prevent sharp bends on cables while maintaining a liquid tight seal. Rated IP 68. Fit 2.9mm to 6.4mm cables in diameter.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Pigtail
Colour	Black
Material	Nylon 66
Length	62mm
Width	15mm
Internal Hole Diameter	12.5mm
Thread Length	8.4mm
Cable Size Minimum	2.9mm
Cable Size Maximum	6.4mm
IP Rating	IP 68
Minimum Temperature	-40°C
Maximum Temperature	115°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	Includes Nylon Nut
