Picture of Cable Gland Reducer ATEX

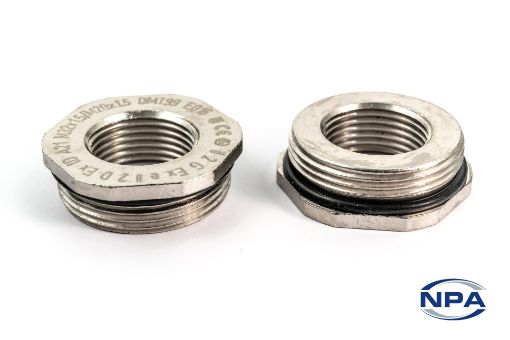

Cable Gland Reducer ATEX

Product Code: DEL3276EX
Manufacturer: Delaunay
UOM: EACH
Brass fittings to reduce a thread from M20 to M12. Sealing rated at IP 68. Meet standards EN 50014 and 50019, DMT 99 and aTEX E 016.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland Reducer
TypeATEX
MaterialNickel Plated Brass
Width22mm
Thread Length6mm
Thread PitchM20 x 1.5mm
Internal ThreadM12 x 1.5mm
IP RatingIP 68
Minimum Temperature-20°C
Maximum Temperature80°C
CertificationsUL
Other informationStandards DMT 99, ATEX E016
