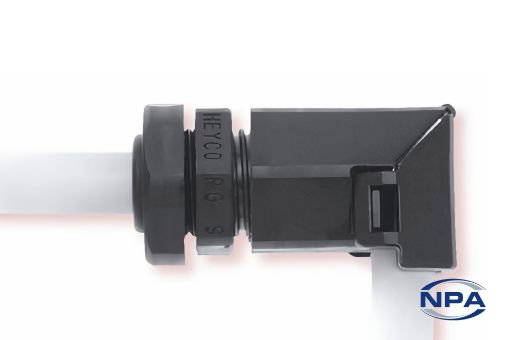

Cable Gland Right-Angled Liquid Tight Black

Product Code: M4450
Manufacturer: Heyco
UOM: EACH
M2 cable glands to set cables at a right angle. Rated IP 68. For cables 2.9mm - 6.4mm.
Products specifications
DescriptionCable Gland
TypeRight-Angled Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length38.8mm
Width16mm
Height17.5mm
Mounting Hole Diameter12mm
Thread Length8.1mm
Thread PitchM12
Cable Size Minimum2.9mm
Cable Size Maximum6.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationSealing Nut Length 22mm
