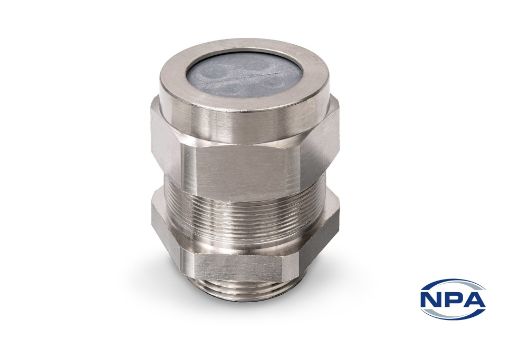

Cable Gland Single Seal, Multi-Hole

Product Code: P07-801M25C3X7
Manufacturer: Delaunay
UOM: EACH
Cable glands with three 7mm holes for heavy duty applications such a rail with a single silicone seal for extra cable protection. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Traction & Rotation Certifications: NF EN 50262, NF EN 62444. Shock certifications: NF EN 50262. Railway traction certification: NF F 61-030. Railway wear: 1 million cycles. Hazardous material certifications: RoHS - reach, ENG-FRM-001. Fire and flame arrestor certifications: NF F 16-101:I2F0, EN 45545-2:HL3, EN 45545-3:E25 (up to 820°C). Moulded from nickel plated brass with silicone insert and sealing fiber.
Products specifications
DescriptionCable Gland
TypeSingle Seal, Multi-Hole
MaterialNickel Plated Brass With Silicone Seal
Length41.5mm
Width32mm
Thread Length8mm
Thread PitchM25
Cable Size mm7mm
IP RatingIP 6X, IPX6, IPX8
Minimum Temperature-50°C
Maximum Temperature800°C
CertificationsRoHS
Other information3 Holes
