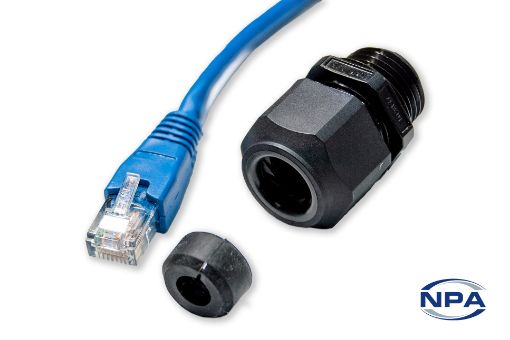

Cable Gland Split Gland Liquid Tight Black

Product Code: M3200GBH

Manufacturer: Heyco

UOM: EACH

1/2" NPT threaded cable glands with a splittable head to fit cables that already have large terminations on the end such as RJ45 cables with Cat5e ports. Fits cables from 5.3mm to 8.5mm.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Split Gland Liquid Tight
Colour	Black
Material	Nylon 66
Length	42.7mm
Width	27mm
Mounting Hole Diameter	22.2mm
Internal Hole Diameter	14.2mm
Thread Length	11.2mm
Thread Pitch	NPT ½"
Cable Size Minimum	5.3mm
Cable Size Maximum	8.5mm
IP Rating	IP 68
Minimum Temperature	-40°C
Maximum Temperature	115°C
Flammability Rating	94V-2
Certifications	UL

Customers who bought this item also bought

Cable Tie Mount [Sold in bags of 100] Screw Mount With Right Angle Cable Entry Black

Product Code: 42522RA

UOM: EACH

Length: 20mm

Width: 10mm

Height: 6mm

Mounting Hole Diameter: 4.3mm

Right angled clip for cable ties up 4.8mm wide. Mounts with a 4.3mm screw.

to purchase this item

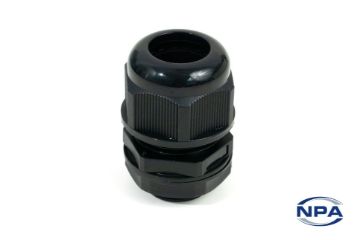

Cable Gland Standard Black
