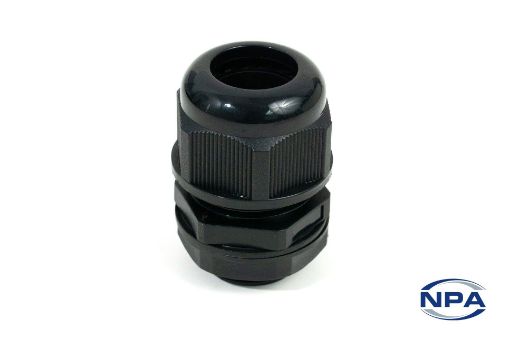

Cable Gland Standard Black

Product Code: 40621

Manufacturer: NPA

UOM: EACH

M12 threaded nylon cable glands for 3mm - 6.5mm cables. Offer protection to IP68 standard. Supplied complete with locknut and washer.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Standard
Colour	Black
Material	Nylon 66
Mounting Hole Diameter	12.5mm
Thread Pitch	M12 x 1.5mm
Cable Size Minimum	3mm
Cable Size Maximum	6.5mm
Certifications	UL
