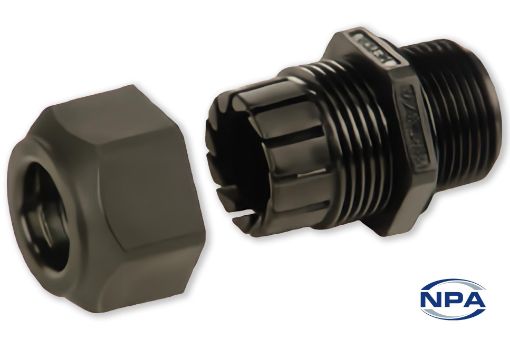

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4330
Manufacturer: Heyco
UOM: EACH
M12 threaded cable glands rated IP 68. Fit cables from 1.7mm to 5.3mm in diameter.
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length29.5mm
Width16mm
Mounting Hole Diameter16mm
Thread Length8.1mm
Thread PitchM12
Cable Size Minimum1.7mm
Cable Size Maximum5.3mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
