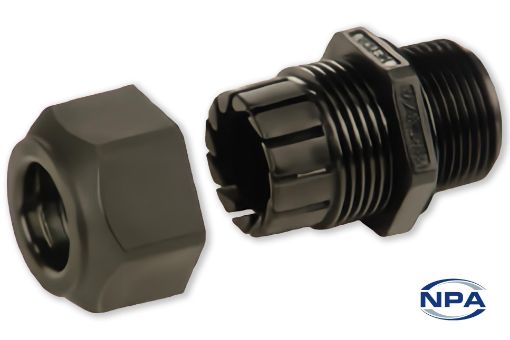

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4336
Manufacturer: Heyco
UOM: EACH
M16 threaded cable glands for cables measuring 2.7mm to 8mm. Rated IP 68.
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length31.8mm
Width20.8mm
Mounting Hole Diameter16mm
Thread Length8.1mm
Thread PitchM16
Cable Size Minimum2.7mm
Cable Size Maximum8mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
