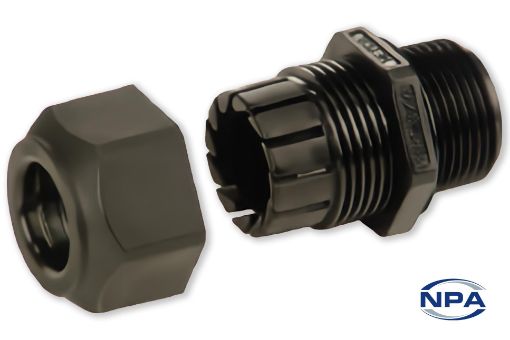

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4348
Manufacturer: Heyco
UOM: EACH
M32 threaded cable glands rated IP 68. For cables ranging from 15mm to 25.4mm.
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length56.6mm
Width43.9mm
Mounting Hole Diameter32mm
Thread Length14.5mm
Thread PitchM32
Cable Size Minimum15mm
Cable Size Maximum25.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
