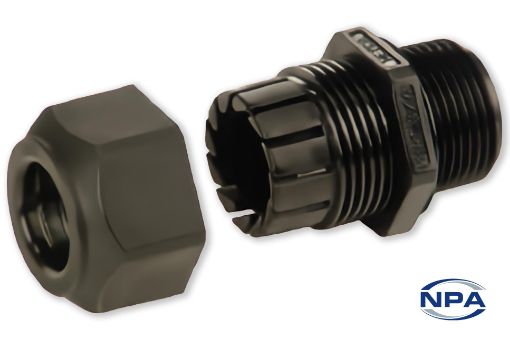

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4352
Manufacturer: Heyco
UOM: EACH
M40 threaded cable glands rated IP 68. Fit cables from 22mm to 32mm in diameter.
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length60.7mm
Width52.7mm
Mounting Hole Diameter40mm
Thread Length11.9mm
Thread PitchM40
Cable Size Minimum22mm
Cable Size Maximum32mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
