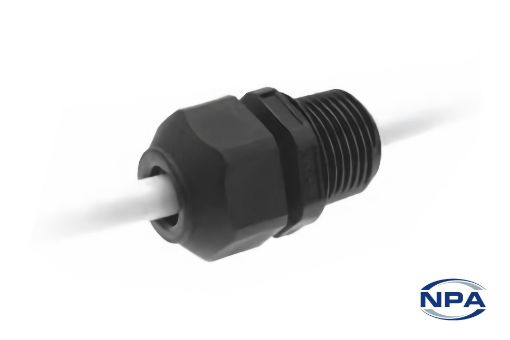

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4500
Manufacturer: Heyco
UOM: EACH
PG-13.5 cable glands rated IP 68. Fit cables from 2.4mm to 7.4mm in diameter.
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length38.9mm
Width24.9mm
Mounting Hole Diameter20.4mm
Thread Length10.4mm
Thread PitchPG-13.5
Cable Size Minimum2.4mm
Cable Size Maximum7.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
