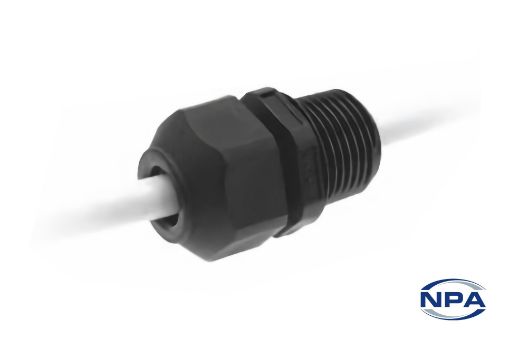

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4516
Manufacturer: Heyco
UOM: EACH
1/4" NPT threaded cable glands rated IP 68. Fit cables from 2.9mm to 6.4mm.
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length32.8mm
Width16mm
Mounting Hole Diameter13.7mm
Thread Length11.4mm
Thread Pitch¼" NPT
Cable Size Minimum2.9mm
Cable Size Maximum6.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
