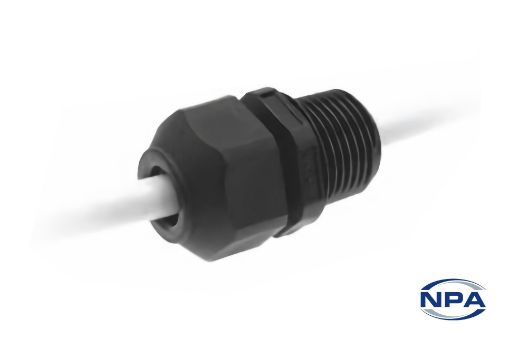

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4522
Manufacturer: Heyco
UOM: EACH
1 1/4" NPT threaded cable glands rated IP 68. For cables measuring 20mm - 25.9mm in diameter.
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length68.3mm
Width52.1mm
Mounting Hole Diameter42.7mm
Thread Length19.8mm
Thread Pitch1 ¼" NPT
Cable Size Minimum20mm
Cable Size Maximum25.9mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
