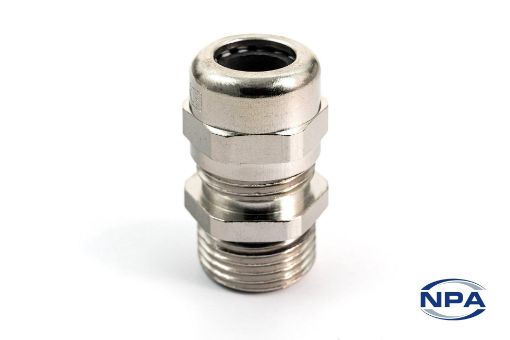

Picture of Cable Gland WADI 2 Holes

Cable Gland WADI 2 Holes

Product Code: DEL21409
Manufacturer: Delaunay
UOM: EACH
PG-9 threaded WADI Type cable glands with two holes. Sealing rated at IP 65. Fit cables from 2.3mm to 3.5mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeWADI 2 Holes
MaterialNickel Plated Brass
Width18mm
ProfileHexagonal
Thread Length6mm
Thread PitchPG-9
Chassis Hole Diameter18mm
Cable Size Minimum2.3mm
Cable Size Maximum3.5mm
Minimum Temperature-30°C
Maximum Temperature110°C
CertificationsNFC 68311, DIN 40430
Other information2 Holes
