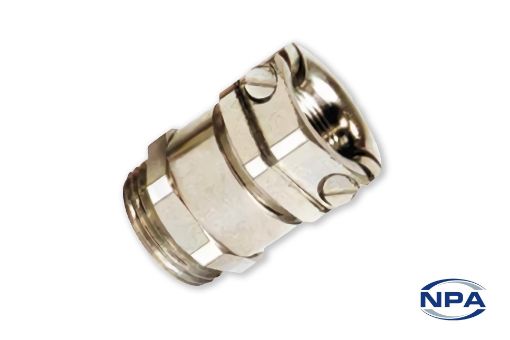

Cable Gland ZA - AC Clamping Gland

Product Code: DEL2605
Manufacturer: Delaunay
UOM: EACH
PG-16 threaded brass cable glands with a flanged head. Equipped with clamping jaws and multiple pre-cut sections. Sealing rated at IP 65. Meets standards NFC 68312 and DIN 40430. Fit cables from 10mm to 15mm.
Products specifications
DescriptionCable Gland
TypeZA - AC Clamping Gland
MaterialNickel Plated Brass
ProfileHexagonal
Thread PitchPG-16
Internal Thread16mm
Cable Size Minimum9mm
Cable Size Maximum15mm
Minimum Temperature-30°C
Maximum Temperature100°C
CertificationsNFC 68312, DIN40430
Other informationSealing Ring: 9 x 11 x 13 x 15mm
