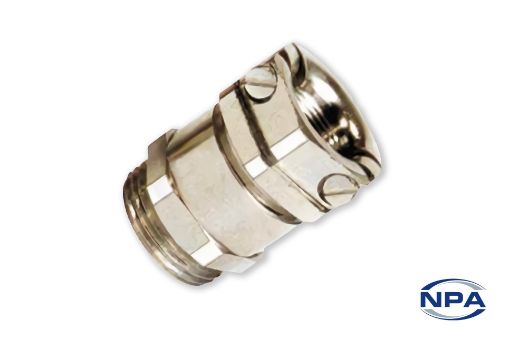

Cable Gland ZA - AC Clamping Gland

Product Code: DEL2607
Manufacturer: Delaunay
UOM: EACH
PG-29 threaded brass cable glands with a flanged head. Equipped with clamping jaws and multiple pre-cut sections. Sealing rated at IP 65. Meets standards NFC 68312 and DIN 40430. Fit cables from 19mm to 27mm.
Products specifications
DescriptionCable Gland
TypeZA - AC Clamping Gland
MaterialNickel Plated Brass
ProfileHexagonal
Thread PitchPG-29
Internal Thread29mm
Cable Size Minimum20mm
Cable Size Maximum27mm
Minimum Temperature-30°C
Maximum Temperature100°C
CertificationsNFC 68312, DIN40430
Other informationSealing Ring: 20 x 23 x 27mm
