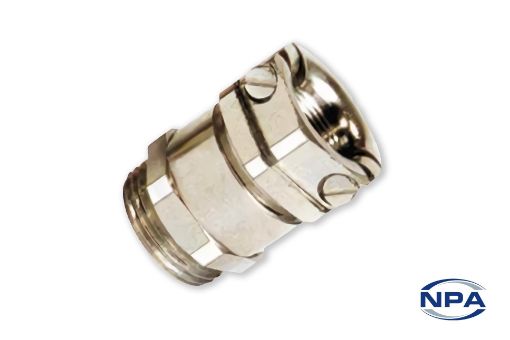

Cable Gland ZA - AC Clamping Gland

Product Code: DEL2610
Manufacturer: Delaunay
UOM: EACH
PG-48 DIN threaded brass cable glands with a flanged head. Equipped with clamping jaws and multiple pre-cut sections. Sealing rated at IP 65. Meets standards NFC 68312 and DIN 40430. Fit cables from 35mm to 45mm.
Products specifications
DescriptionCable Gland
TypeZA - AC Clamping Gland
MaterialNickel Plated Brass
ProfileHexagonal
Thread PitchPG-48 DIN
Internal Thread48mm
Cable Size Minimum40mm
Cable Size Maximum47mm
Minimum Temperature-30°C
Maximum Temperature100°C
CertificationsNFC 68312, DIN40430
Other informationSealing Ring: 40 x 43 x 47mm
