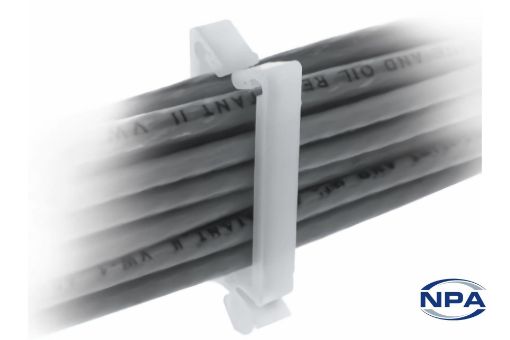

Picture of Cable Holder Latch Gate - Side Entry Natural

Cable Holder Latch Gate - Side Entry Natural

Product Code: 3697
Manufacturer: Heyco
UOM: EACH
Rectangular cable holders that uses tension to secure cables and bundles. Mounts into 4.8mm PCB holes with panels up to 1.9mm thick. Insert cables through the side. Fits cables and bundles up to 11.1mm x 18.3mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Holder
TypeLatch Gate - Side Entry
ColourNatural
MaterialNylon 66
Length25.4mm
Width5.6mm
Height16.7mm
Mounting Hole Diameter4.8mm
Cable Size mm11.1 x 18.3mm
Mounting TypeArrowhead Mount
Minimum Temperature0°C
Maximum Temperature85°C
Flammability Rating94V-2
CertificationsUL
