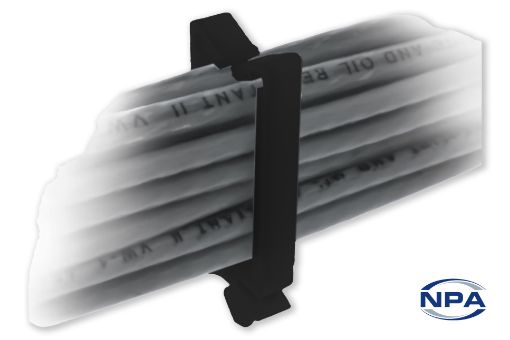

Picture of Cable Holder Rectangular Gate - Side Entry Black

Cable Holder Rectangular Gate - Side Entry Black

Product Code: 3652B
Manufacturer: Heyco
UOM: EACH
Rectangular cable holders that uses tension to secure cables and bundles. Mounts into 4.8mm PCB holes with panels up to 1.9mm thick. Insert cables through the side. Fits cables and bundles up to 11.1mm x 19.1mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Holder
TypeRectangular Gate - Side Entry
ColourBlack
MaterialNylon 66
Length25.4mm
Width5.6mm
Height15.9mm
Mounting Hole Diameter4.8mm
Cable Size mm11.1 x 19.1mm
Mounting TypeArrowhead Mount
Minimum Temperature0°C
Maximum Temperature85°C
Flammability Rating94V-2
CertificationsUL
