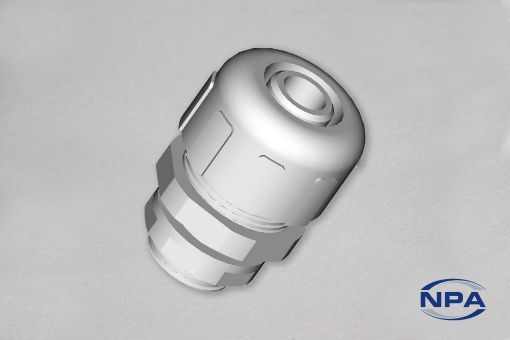

Conduit Fitting Liquid Tight Grey

Product Code: 8403
Manufacturer: Heyco
UOM: EACH
Grey hubs to attach 1/2" NPT thread fittings to Heyco's Heyco-Flex I and Heyco-Flex II conduits and tubing. Fit 1/2" NPT tubes.
Products specifications
DescriptionConduit Fitting
TypeLiquid Tight
ColourGrey
MaterialNylon 66
Length49.8mm
Width33.7mm
Mounting Hole Diameter22.2mm
Thickness6.3mm
ProfileStraight-Thru
Thread Length16mm
Thread PitchNPT ½"
IP RatingIP 68
Minimum Temperature-30°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
