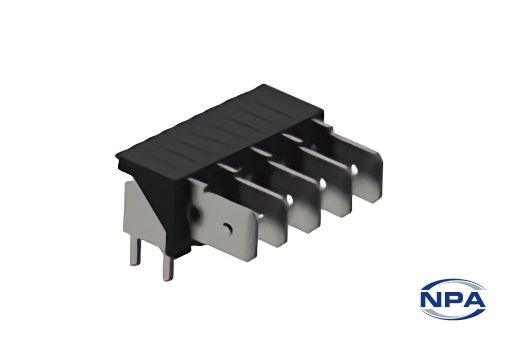

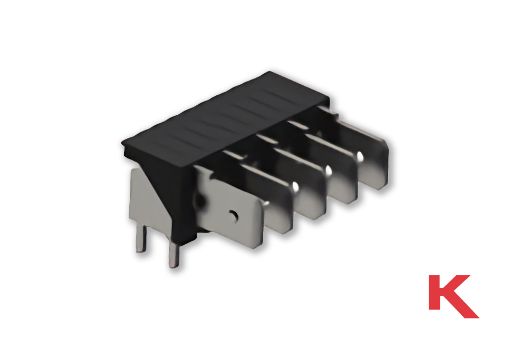

Connector Quick Connect Header Assembly

Name: Connector Quick Connect Header Assembly
SKU: K7825
Availability: InStock

Product Code: K7825

Manufacturer: Keystone

UOM: EACH

Terminal headers containing five male quick-fit tabs for bulk connections. Horizontal orientation.

Products specifications

Description	Connector
Type	Quick Connect Header Assembly
Material	Tin Plated Steel
Length	20mm
Width	24.4mm
Height	11mm
Profile	Horizontal
Voltage Rating	500V
Current Rating	15A
Insulation Type	Thermoplastic
Tab Size	6.4mm
Minimum Temperature	-50°C
Maximum Temperature	145°C
Flammability Rating	94V-0
Certifications	UL
Other information	5 Tabs
