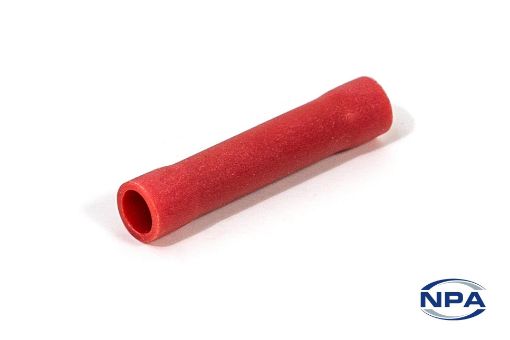

Crimp Connector Butt Red

Product Code: 30476

Manufacturer: NPA

UOM: EACH

Pre-Insulated female butt terminals with colour coding for different wire sizes. Fully insulated to prevent shocks when disconnecting. Easily attached with our readliy available crimping tools (see part number 23001). Fits cables from 0.5mm² to 1.5mm².

Download Datasheet

Products specifications

Description	Crimp Connector
Type	Butt
Colour	Red
Material	Copper Tin Plate
Insulation Type	Pre-Insulated
Cable Size AWG	22 - 16
Cable Size Minimum	0.5mm²
Cable Size Maximum	1.5mm²
