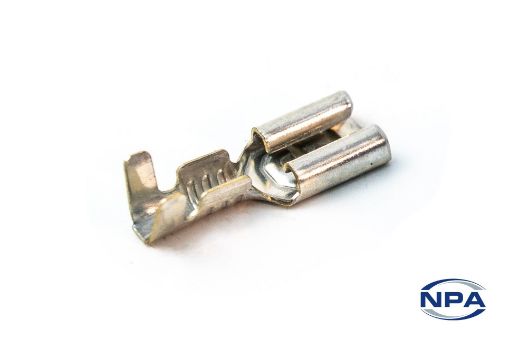

Crimp Connector Quick Connect

Product Code: 30590

Manufacturer: NPA

UOM: EACH

6.3mm un-Insulated female quick connect terminals easily attached with our readliy available crimping tools (see part no 23001). Fit cables from 0.5mm² to 2.5mm².

Download Datasheet

Products specifications

Description	Crimp Connector
Type	Quick Connect
Material	Brass
Length	19mm
Width	7.5mm
Height	3.6mm
Thickness	0.35mm
Insulation Type	Non-Insulated
Tab Size	6.3mm
Cable Size AWG	22 - 14
Cable Size Minimum	.5mm²
Cable Size Maximum	2.5mm²
Gender	Female

Customers who bought this item also bought

Hole Plug Dome White

Product Code: 2618

UOM: EACH

Height: 10.3mm

Diameter: 11.9mm

Mounting Hole Diameter: 9.5mm

Panel Thickness: 3.2mm

9.5mm convex dome shaped hole plug for filling unneeded holes. Fits panels up to 3.2mm thick.

to purchase this item

Ferrule Single Wire Red

Product Code: 30352

UOM: EACH

Length: 14.6mm

Diameter: 1.4mm

1mm² insulated bootlace ferrules. Protect stranded cables in screw connectors and terminal blocks.

to purchase this item

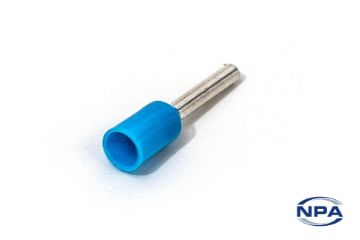

Ferrule Single Wire Blue
