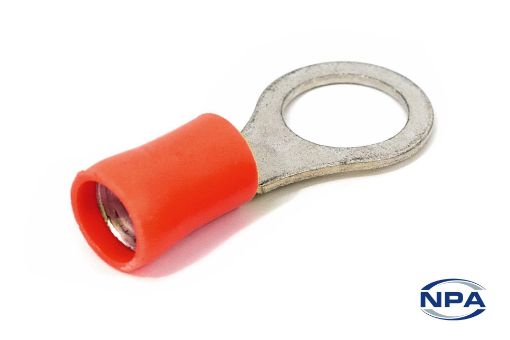

Crimp Connector Ring Red

Product Code: 30635

Manufacturer: NPA

UOM: EACH

Pre-Insulated ring terminals with ouble grip to protect connection from vibration. Insulation covers wire while leaving terminal accessible. Fit 0.5mm² to 1.5mm² wires. Use #10 imperial screws.

Download Datasheet

Products specifications

Description	Crimp Connector
Type	Ring
Colour	Red
Material	Copper Tin Plate
Screw Size	5mm
Insulation Type	Double Grip
Cable Size AWG	22 - 16
Cable Size Minimum	.5mm²
Cable Size Maximum	1.5mm²
