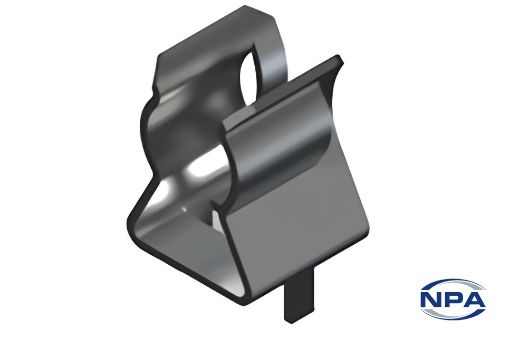

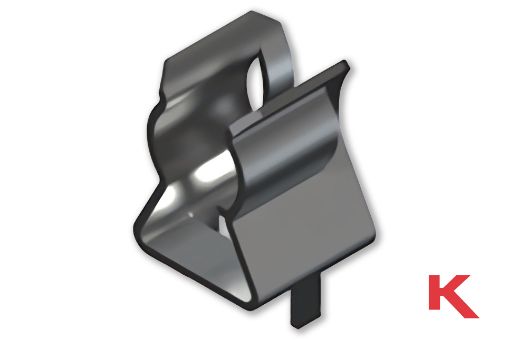

Picture of Fuse Clip Snap-In PC

Fuse Clip Snap-In PC

Product Code: K3530
Manufacturer: Keystone
UOM: EACH
Thru-hole mounted fuse clips with straight legs to snap into PCB chassis. No end stops allowing for easy insertion. Support 1AG, 3AG, 7AG and 8AG fuses. Current rating: 15 Amps.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionFuse Clip
TypeSnap-In PC
MaterialTin Plated Brass
Length8.5mm
Width6.9mm
Height7.9mm
Diameter6.4mm
Current Rating15A
Mounting TypeThru-Hole Mount (THM)
CertificationsUL
Other informationFuse Size: 1AG, 3AG, 7AG, 8AG With Straight PC Legs
