Picture of HEYClip Cable Clip Locking Releasable Grey

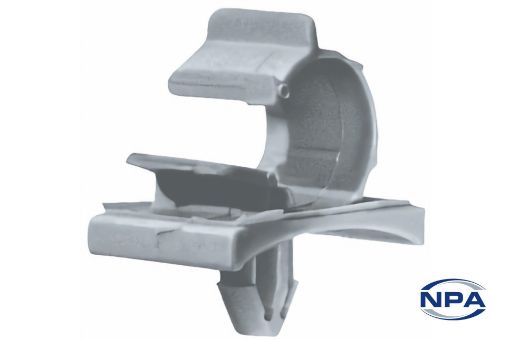

HEYClip Cable Clip Locking Releasable Grey

Product Code: 3847
Manufacturer: Heyco
UOM: EACH
Wire clips with an arrowhead mount to fit onto PCBs or other small panel holes. Fit cables and bundles with a diameter up to 9.5mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionHEYClip Cable Clip
TypeLocking Releasable
ColourGrey
MaterialNylon 66
Length25.7mm
Width1.01mm
Height13.5mm
Mounting Hole Diameter6.4mm
Panel Thickness0.5mm - 2mm
Cable Size Maximum9.5mm
Mounting TypeArrowhead Mount
Minimum Temperature0°C
Maximum Temperature85°C
Flammability Rating94V-2
Other informationClamp Width 12.7mm
