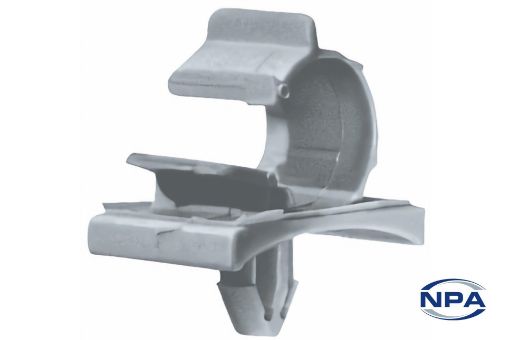

Picture of HEYClip Cable Clip Locking Releasable Grey

HEYClip Cable Clip Locking Releasable Grey

Product Code: 3849
Manufacturer: Heyco
UOM: EACH
Wire clips with an arrowhead mount to fit onto PCBs or other small panel holes. Fit cables and bundles with a diameter up to 19.1mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionHEYClip Cable Clip
TypeLocking Releasable
ColourGrey
MaterialNylon 66
Length35.1mm
Width1.38mm
Height25.1mm
Mounting Hole Diameter6.4mm
Panel Thickness0.5mm - 2mm
Cable Size Maximum19.1mm
Mounting TypeArrowhead Mount
Minimum Temperature0°C
Maximum Temperature85°C
Flammability Rating94V-2
Other informationClamp Width 17mm
