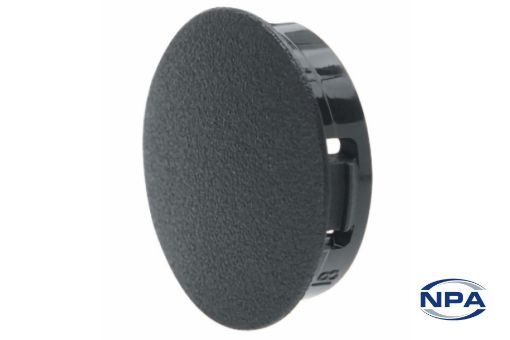

Picture of Hole Plug Shorty Black

Hole Plug Shorty Black

Product Code: 1687
Manufacturer: Heyco
UOM: EACH
12.7mm short convex dome plug for thin panels up to 1.6mm thick.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionHole Plug
TypeShorty
ColourBlack
MaterialNylon 66
Height6.4mm
Diameter14.3mm
Mounting Hole Diameter12.7mm
Panel Thickness1.6mm
Minimum Temperature-40°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
