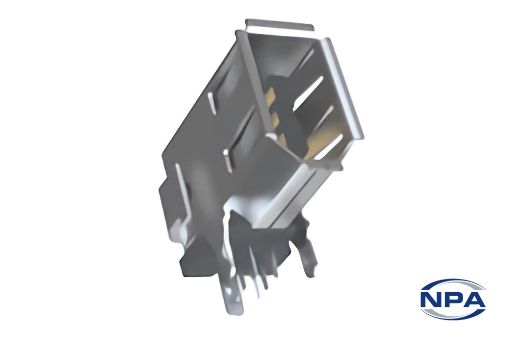

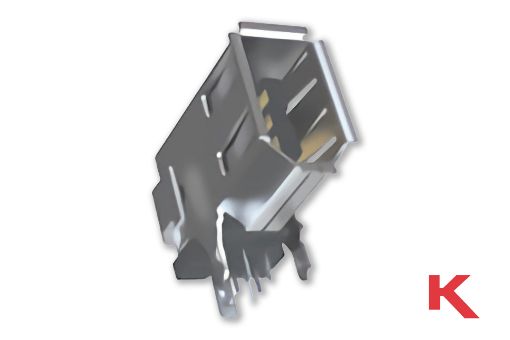

    Picture of IEEE 1394 Socket Thru-Hole Mount

    IEEE 1394 Socket Thru-Hole Mount

    Product Code: K930
    Manufacturer: Keystone
    UOM: EACH
    Thru-hole mount firewire IEE1394 sockets. Vertical orientation.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionIEEE 1394 Socket
    TypeThru-Hole Mount
    MaterialTin Over Nickel Plated Steel Shell, LCP Insulation, Gold Over Nickel Plated Phosphor Bronze Contact Area, Tin Over Nickel Plated Bronze Solder Tail
    Length18.1mm
    Width6.2mm
    Height13.5mm
    ProfileVertical
    Voltage Rating750VAC
    Current Rating1A
    Minimum Temperature0°C
    Maximum Temperature40°C
    Flammability Rating94V-0
    CertificationsUL
