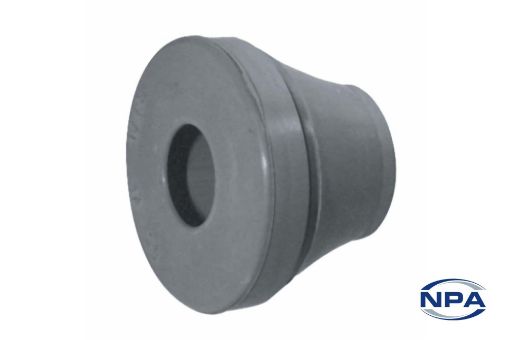

    Picture of Liquid Tight Bushing Snap-In Grey

    Liquid Tight Bushing Snap-In Grey

    Product Code: 4007
    Manufacturer: Heyco
    UOM: EACH
    3mm - 5mm cables fit inside these EPDM bushings. To install, snap into place, cut cable end at a 45° angle, pierce the thin membrane then insert and pull back cable to form a liquid tight seal. Can be used as a liquid tight plug with IP Rating 67.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionLiquid Tight Bushing
    TypeSnap-In
    ColourGrey
    MaterialEPDM
    Length12.7mm
    Diameter20mm
    Mounting Hole Diameter12.5mm
    Thickness6.5mm
    Panel Thickness4mm
    Cable Size Minimum4mm
    Cable Size Maximum7mm
    IP RatingIP 67
    Minimum Temperature-40°C
    Maximum Temperature93°C
    Other informationTo Fit M12
