    Picture of Liquid Tight Bushing Snap-In Grey

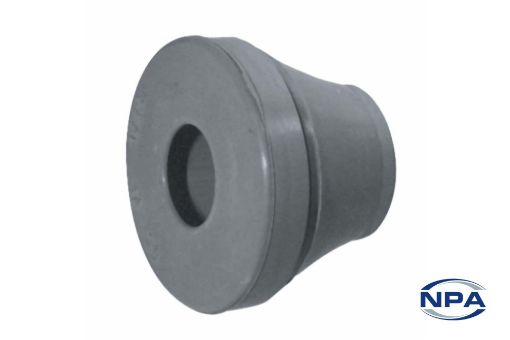

    Liquid Tight Bushing Snap-In Grey

    Product Code: 4008
    Manufacturer: Heyco
    UOM: EACH
    5mm - 9mm cables fit inside these EPDM bushings. To install, snap into place, cut cable end at a 45° angle, pierce the thin membrane then insert and pull back cable to form a liquid tight seal. Can be used as a liquid tight plug with IP Rating 67.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionLiquid Tight Bushing
    TypeSnap-In
    ColourGrey
    MaterialEPDM
    Length18mm
    Diameter21mm
    Mounting Hole Diameter16.5mm
    Thickness6.5mm
    Panel Thickness4mm
    Cable Size Minimum5mm
    Cable Size Maximum9mm
    IP RatingIP 67
    Minimum Temperature-40°C
    Maximum Temperature93°C
    Other informationTo Fit M16
