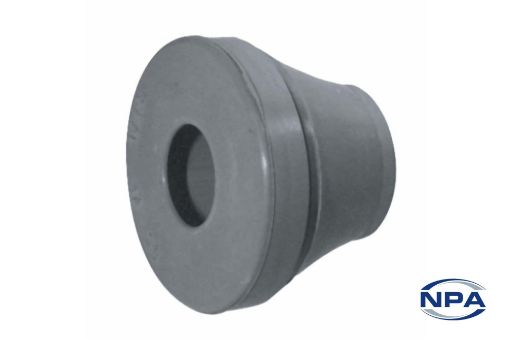

    Picture of Liquid Tight Bushing Snap-In Grey

    Liquid Tight Bushing Snap-In Grey

    Product Code: 4010
    Manufacturer: Heyco
    UOM: EACH
    11mm - 17mm cables fit inside these EPDM bushings. To install, snap into place, cut cable end at a 45° angle, pierce the thin membrane then insert and pull back cable to form a liquid tight seal. Can be used as a liquid tight plug with IP Rating 67.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionLiquid Tight Bushing
    TypeSnap-In
    ColourGrey
    MaterialEPDM
    Length21.5mm
    Diameter30.5mm
    Mounting Hole Diameter25.4mm
    Thickness8.1mm
    Panel Thickness4mm
    Cable Size Minimum11mm
    Cable Size Maximum17mm
    IP RatingIP 67
    Minimum Temperature-40°C
    Maximum Temperature93°C
    Other informationTo Fit M25
