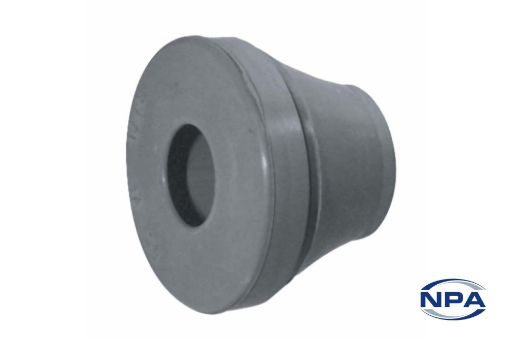

Picture of Liquid Tight Bushing Snap-In Grey

Liquid Tight Bushing Snap-In Grey

Product Code: 4015
Manufacturer: Heyco
UOM: EACH
5mm - 7mm cables fit inside these EPDM bushings. To install, snap into place, cut cable end at a 45° angle, pierce the thin membrane then insert and pull back cable to form a liquid tight seal. Can be used as a liquid tight plug with IP Rating 67.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionLiquid Tight Bushing
TypeSnap-In
ColourGrey
MaterialEPDM
Length19.5mm
Diameter20.5mm
Mounting Hole Diameter16mm
Thickness7mm
Panel Thickness4mm
Cable Size Minimum5mm
Cable Size Maximum7mm
IP RatingIP 67
Minimum Temperature-40°C
Maximum Temperature93°C
Other informationTo Fit PG-9
